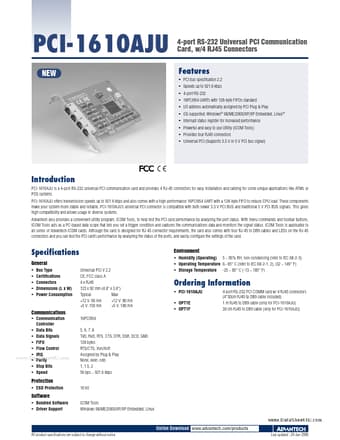

PCI-1610AJU Datasheet, connectors equivalent, Advantech

PCI-1610AJU Features

• Connectors
• PCI bus specification 2.2
• Speeds up to 921.6 kbps
• 4-port RS-232
• 16PCI954 UARTs with 128-byte FIFOs standard
• I/O address automatically a

PDF File Details

Part number:

PCI-1610AJU

Manufacturer:

Advantech

File Size:

177.49kb

Download:

📄 Datasheet

Description:

4-port rs-232 universal pci communication card w/4 rj45 connectors.

PCI-1610AJU Application

• Applications like ATMs or POS systems. PCI-1610AJU offers transmission speeds up to 921.6 kbps and also comes with a high-performance 16PCI954 UART
