UT54ACTS253

Dual 4-Input Multiplexers

Aeroflex Circuit Technology

UT54ACTS253 Features

* Permits multiplexing from N lines to 1 line Performs parallel-to-serial conversion 1.2μ CMOS - Latchup immune High speed Low power consumption Single 5 volt supply Available QML Q or V processes Flexible package - 16-pin DIP - 16-lead flatpack UT54ACS253 - SMD 5962-96574 UT54ACTS

UT54ACTS253 General Description

The UT54ACS253 and the UT54ACTS253 are 1-line to 4-line multiplexers that contain drivers to supply full binary decoding. Separate output control inputs are provided for each of the two four-line sections. Use the three-state outputs to drive data lines in bus-organized systems. With all but one o.

UT54ACTS253 Datasheet (232.81 KB)

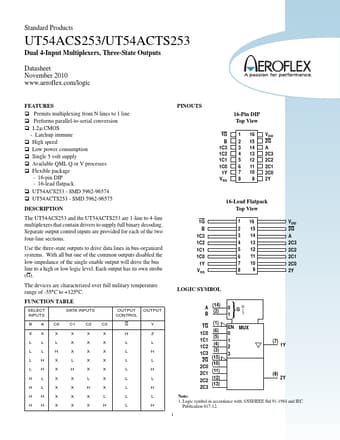

UT54ACTS253 Datasheet Preview — Preview of UT54ACTS253 PDF

Datasheet Details

Part number:

UT54ACTS253

Manufacturer:

Aeroflex Circuit Technology

File Size:

232.81 KB

Description:

Dual 4-input multiplexers.
