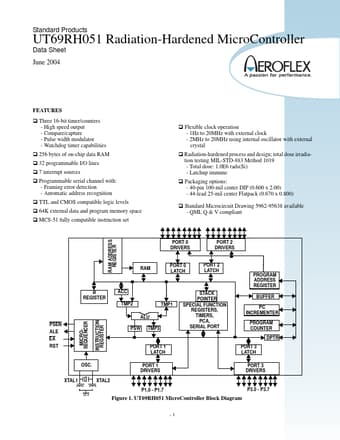

UT69RH051
FEATURES
Three 16-bit timer/counters
- High speed output
- pare/capture
- Pulse width modulator
- Watchdog timer capabilities 256 bytes of on-chip data RAM 32 programmable I/O lines 7 interrupt sources Programmable serial channel with:
- Framing error detection
- Automatic address recognition TTL and CMOS patible logic levels 64K external data and program memory space MCS-51 fully patible instruction set Flexible clock operation
- 1Hz to 20MHz with external clock
- 2MHz to 20MHz using internal oscillator with external crystal Radiation-hardened process and design; total dose irradiation testing MIL-STD-883 Method 1019
- Total dose: 1.0E6 rads(Si)
- Latchup immune Packaging options:
- 40-pin 100-mil center DIP (0.600 x 2.00)
- 44-lead 25-mil center Flatpack (0.670 x 0.800) Standard Microcircuit Drawing 5962-95638 available
- QML Q & V pliant
RAM ADDRESS REGISTER
PORT 0 DRIVERS
PORT 2 DRIVERS
PORT 0 LATCH
PORT 2 LATCH
PROGRAM ADDRESS REGISTER BUFFER PC...
