1N5455 Datasheet - Aeroflex

1N5455 Silicon Abrupt Varactors

Silicon Abrupt Varactors: General Purpose Glass Axial Leaded 1N5441 1N5456 Model 1N5441 1N5442 1N5443 1N5444 1N5445 1N5446 1N5447 1N5448 1N5449 1N5450 1N5451 1N5452 1N5453 1N5454 1N5455 1N5456 Test Conditions Capacitance pF 6.8 8.2 10.0 12.0 15.0 18.0 20.0 22.0 27.0 33.0 39.0 47.0 56.0 68.0 82.0 100.0 @ 4 Vdc, 1 MHz Tuning Ratio MIN 2.5 2.5 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.7 2.7 2.7 Ct 2 V / C t 30 V F=1-MHz MAX 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.2 3.2 3.2 3.2 3.2 3.3 3..

1N5455 Datasheet (49.92 KB)

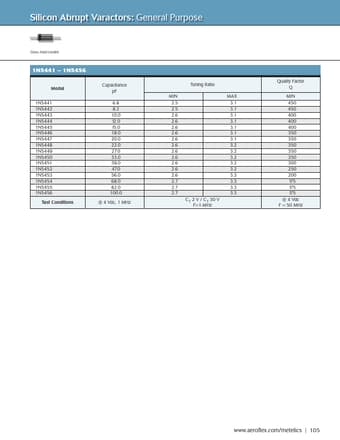

1N5455 Datasheet Preview — Preview of 1N5455 PDF

Datasheet Details

Part number:

1N5455

Manufacturer:

Aeroflex

File Size:

49.92 KB

Description:

Silicon abrupt varactors.
