MMA704 - DC to 3.7 GHz Amplifier

Description

The MMA704 is a fully matched amplifier fabricated in Aeroflex / Metelics reliable InGap HBT technology.

The economical SOT89 package provides excellent wideband performance.

Features

  • DC - 3.7 GHz Broadband Gain Block ± 0.5 dB Typical Gain Flatness 50 Ohms Input/Output Impedances RF Specifications: Parameter 3dB Bandwidth Frequency Range Gain Output Power Standing Wave Ratio 3 Order Intercept Point Noise Figure Device Current NOTES: rd Term BW fO GP P1dB VSWR IP3 NF IC Minimum DC DC 16 +16 --+23 --42 Typical ----1 7 +1 7 1.5:1 +25 4 48 Maximum 3.7 1.5 ----2.0:1 --4.5 55 Units GHz GHz dB dBm --dBm dB mA 1. TA = +25 °C. 2. VS = 6.0 Vdc, R B.

📥 Download Datasheet

Datasheet preview – MMA704

Datasheet Details

Part number MMA704
Manufacturer Aeroflex
File Size 325.06 KB
Description DC to 3.7 GHz Amplifier
Datasheet download datasheet MMA704 Datasheet
Additional preview pages of the MMA704 datasheet.

📁 Similar Datasheet

  • MMA701 - High Linearity Packaged HBT (MCE)
  • MMA703 - DC to 6 GHz Amplifier (Aeroflex Circuit Technology)
  • MMA7260Q - Three Axis Low-g Micromachined Accelerometer (Freescale Semiconductor)
  • MMA7260QR2 - Micromachined Accelerometer (NXP)
  • MMA7260QT - Micromachined Accelerometer (NXP)
  • MMA7260QT - Three Axis Low-g Micromachined Accelerometer (Freescale Semiconductor)
  • MMA7261Q - Three Axis Low-g Micromachined Accelerometer (Freescale Semiconductor)
  • MMA7261QT - Three Axis Low-g Micromachined Accelerometer (Freescale Semiconductor)
  • MMA7330L - Three Axis Low-g Micromachined Accelerometer (Freescale Semiconductor)
  • MMA7331L - Three Axis Low-g Micromachined Accelerometer (Freescale Semiconductor)
Other Datasheets by Aeroflex
  • MMA701A - InGaP HBT Amplifier
  • MMA705 - DC to 4 GHz Amplifier
  • MMA706 - DC to 6 GHz Amplifier
  • MMA707 - 1 Watt InGaP HBT Amplifier
  • MMA708 - DC to 6 GHz Amplifier
  • MMA709 - 2 Watt InGaP HBT Amplifier
  • MMA710 - DC to 4 GHz Amplifier
  • MMA712 - DC to 12 GHz Amplifier

Full PDF Text Transcription

Click to expand full text

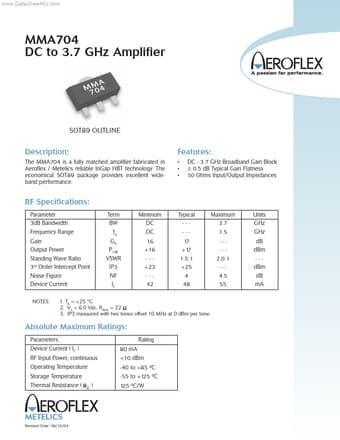

www.DataSheet4U.com MMA704 DC to 3.7 GHz Amplifier SOT89 OUTLINE Description: The MMA704 is a fully matched amplifier fabricated in Aeroflex / Metelics reliable InGap HBT technology. The economical SOT89 package provides excellent wideband performance. Features: • • • DC - 3.7 GHz Broadband Gain Block ± 0.5 dB Typical Gain Flatness 50 Ohms Input/Output Impedances RF Specifications: Parameter 3dB Bandwidth Frequency Range Gain Output Power Standing Wave Ratio 3 Order Intercept Point Noise Figure Device Current NOTES: rd Term BW fO GP P1dB VSWR IP3 NF IC Minimum DC DC 16 +16 --+23 --42 Typical ----1 7 +1 7 1.5:1 +25 4 48 Maximum 3.7 1.5 ----2.0:1 --4.5 55 Units GHz GHz dB dBm --dBm dB mA 1. TA = +25 °C. 2. VS = 6.0 Vdc, R BIAS = 22 3.
