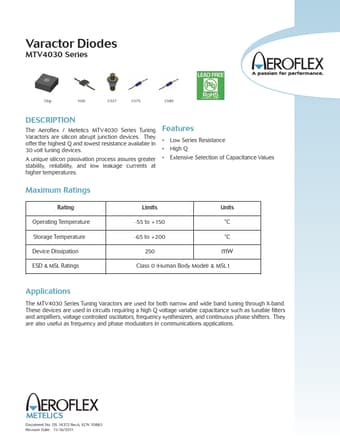

MTV4030-19 Datasheet | Aeroflex

DESCRIPTION The Aeroflex / Metelics MTV4030 Series Tuning Varactors are silicon abrupt junction devices. They offer the highest Q and lowest resistance available in 30 volt tuning devices. A unique silicon passivation process assures greater stability, reliability, and low leakage currents at higher temperatures. Features - Low Series Resistance - High Q - Extensive Selection of Capacitance Values Maximum Ratings Rating Operating Temperature Storage Temperature Device Dissipation ESD & MSL Ratings Limits Units -55 to +150 °C -65 to +200 °C 250 m W Class 0 (Human Body Model) & MSL1 Applications The MTV4030 Series Tuning Varactors are used for both narrow and wide band tuning through X-band. These devices are used in circuits requiring a high Q voltage variable capacitance such as tunable filters and amplifiers, voltage controlled oscillators, frequency synthesizers, and continuous phase shifters. They are...
