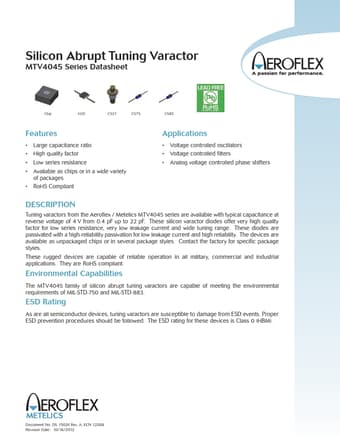

MTV4045-13 Datasheet, Varactor, Aeroflex

📥 Download PDF (238.70 KB)

PDF File Details

Aeroflex manufacturer logo

Part number:

MTV4045-13

Manufacturer:

Aeroflex

File Size:

238.70 KB

Download:

📄 Datasheet

Description:

Silicon abrupt tuning varactor. Tuning varactors from the Aeroflex / Metelics MTV4045 series are available with typical capacitance at reverse voltage of 4 V from 0.

✔ MTV4045-13 Features

Large capacitance ratio
High quality factor
Low series resistance
Available as chips or in a wide variety of packages
RoHS Compliant Applications
Voltage con

✔ MTV4045-13 Application

Voltage controlled oscillators
Voltage controlled filters
Analog voltage controlled phase shifters DE
