MV840 Silicon Abrupt Varactors

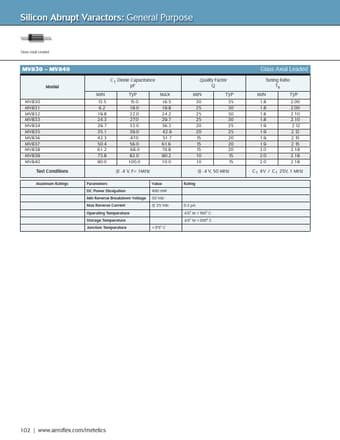

Silicon Abrupt Varactors: General Purpose Glass Axial Leaded MV830 MV840 Model MV830 MV831 MV832 MV833 MV834 MV835 MV836 MV837 MV838 MV839 MV840 Test Conditions Maximum Ratings C T Diode Capacitance pF MIN 13.5 6.2 19.8 24.3 29.7 35.1 42.3 50.4 61.2 73.8 90.0 Typ 15.0 18.0 22.0 27.0 33.0 39.0 47.0 56.0 68.0 82.0 100.0 MAX 16.5 19.8 24.2 29.7 36.3 42.9 51.7 61.6 74.8 90.2 10.0 @ -4 V, F= 1MHz Parameters DC Power Dissipation Min Reverse Breakdown Voltage Max Reverse Current Opera.

MV830-Aeroflex.pdf

MV840 Datasheet Preview — This datasheet PDF includes multiple part numbers: MV840, MV830. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MV840, MV830

Manufacturer:

Aeroflex

File Size:

51.38 KB

Description:

Silicon abrupt varactors.

Note:

This datasheet PDF includes multiple part numbers: MV840, MV830.
Please refer to the document for exact specifications by model.
