TV2103 Silicon Hyperabrupt Tuning Varactors

Silicon Hyperabrupt Tuning Varactors: UHF Bare Die Ceramic Epoxy SMT Glass Axial Leaded High Reliability, Silicon Planar Octave Tuning at UHF Octave Tuning at VHF Straight-Line Frequency Applications Over a 3 to 8 Volt Bias Range Low Cost Applications The Aeroflex / Metelics UHF Tuning Varactors offer higher Qs than their VHF counterparts, but have slightly lower capacitance ratios. These diodes are excellent for octave tuning up to 800 MHz an.

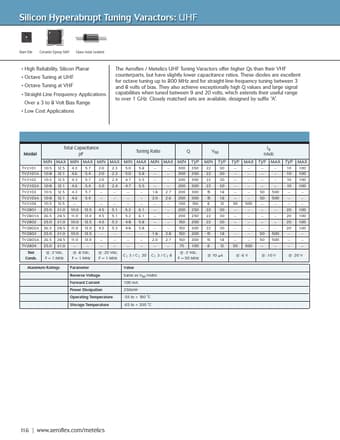

TV2101-Aeroflex.pdf

TV2103 Datasheet Preview — This datasheet PDF includes multiple part numbers: TV2103, TV2101. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TV2103, TV2101

Manufacturer:

Aeroflex

File Size:

65.88 KB

Description:

Silicon hyperabrupt tuning varactors.

Note:

This datasheet PDF includes multiple part numbers: TV2103, TV2101.
Please refer to the document for exact specifications by model.
