TV2401 Silicon Hyperabrupt Tuning Varactors

Silicon Hyperabrupt Tuning Varactors: VHF Bare Die Ceramic Epoxy SMT Glass Axial Leaded High Reliability, Silicon Planar Hermetically Sealed Octave Tuning or Ultra-High Q Applications Straight-Line Frequency Applications Over a 3 to 8 Volt Bias Range Low Cost Applications The Aeroflex / Metelics VHF Tuning Varactors are Ion-implanted highly reproducible hyperabrupt diodes which allow octave tuning of LC tanks up to 500 MHZ or, with a reduced 1.5 to 1 fr.

TV2401 Datasheet (68.39 KB)

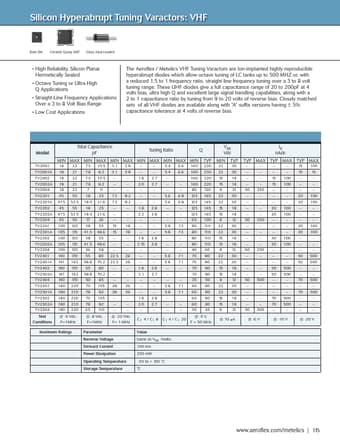

TV2401 Datasheet Preview — Preview of TV2401 PDF

Datasheet Details

Part number:

TV2401

Manufacturer:

Aeroflex

File Size:

68.39 KB

Description:

Silicon hyperabrupt tuning varactors.
