MT2492 - 2A Synchronous Step-Down Converter

Product Overview

📥 Download Datasheet

MT2492 2A Synchronous Step-Down Converter by Aerosemi - Datasheet Preview — Datasheet preview – MT2492

Datasheet Details

Part number	MT2492
Manufacturer	Aerosemi
File Size	396.01 KB
Description	2A Synchronous Step-Down Converter
Datasheet	MT2492 Datasheet

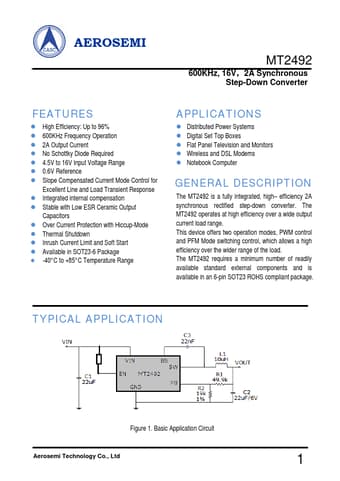

Additional preview pages of the MT2492 datasheet.

Product details

Description

The MT2492 is a fully integrated, high efficiency 2A synchronous rectified step-down converter.

Features

High Efficiency: Up to 96%.
600KHz Frequency Operation.
2A Output Current.
No Schottky Diode Required.
4.5V to 16V Input Voltage Range.
0.6V Reference.
Slope Compensated Current Mode Control for Excellent Line and Load Transient Response.
Integrated internal compensation.
Stable with Low ESR Ceramic Output Capacitors.
Over Current Protection with Hiccup-Mode.
Thermal Shutdown.
Inrush Current Limit and Soft Start.
Available in SOT2.
