AA7623SP

Three Channels Video Driver

AA7623SP Features

* 1. 2. 3. 4. 5. 6. 7. 8. Composite video driver Support 5V operation voltage Three channels video driver Output short circuit protection function A load sufficient for driving two circuits Low operating current, 17mA typical SOP-8 package DC-Couple output APPLICATION VCR Video Camera TV Video Player

AA7623SP General Description

AA7623SP Three Channels Video Driver AA7623SP is a three channels video driver, with 75Ω output buffer, and it supports 5V operation voltage. The 75Ω buffer is capable of driving two circuits. The DC potential for the previous stage can be used for direct DC-couple, because the input is coming di.

AA7623SP Datasheet (108.54 KB)

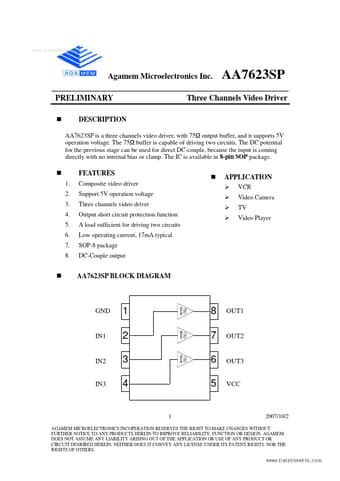

Preview of AA7623SP PDF

Datasheet Details

Part number:

AA7623SP

Manufacturer:

Agamem Microelectronic

File Size:

108.54 KB

Description:

Three channels video driver.
