1417H5A NetLight 1417G5 and 1417H5-Type ATM/SONET/SDH Transceivers with Clock Recovery

The 1417G5 and 1417H5 transceivers are highspeed, cost-effective optical transceivers that are compliant with the International Telecommunication Union Telecommunication (ITU-T) G.957 specifications for use in ATM, SONET, and SDH applications. The 1417G5 operates at the OC-3/STM-1 rate of 155 Mbits/.

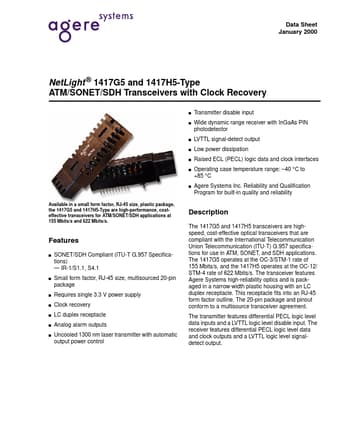

Data Sheet January 2000 NetLight ® 1417G5 and 1417H5-Type ATM/SONET/SDH Transceivers with Clock Recovery s s Transmitter disable input Wide dynamic range receiver with InGaAs PIN photodetector LVTTL signal-detect output Low power dissipation Raised ECL (PECL) logic data and clock interfaces Operating case temperature range: 40 °C to +85 °C Agere Systems Inc. Reliability and Qualification Program for built-in quality and reliability s s s s s Available in a small form factor, RJ-45 .

1417H5A Features

* Agere Systems high-reliability optics and is packaged in a narrow-width plastic housing with an LC duplex receptacle. This receptacle fits into an RJ-45 form factor outline. The 20-pin package and pinout conform to a multisource transceiver agreement. The transmitter features differential PECL logic
