BPPGA16P Datasheet - Agere Systems

Quad Differential Drivers BDG1A/ BDP1A/ BDGLA/ BPNGA/ BPNPA/ and BPPGA

BPPGA16P Features

* s Pin-equivalent to the general-trade 26LS31 device, with improved speed, reduced power consumption, and significantly lower levels of EMI Four line drivers per package Meets ESDI standards 2.0 ns maximum propagation delay Single 5.0 V ± 10% supply Operating temperature range:

* 40 °C to +12

BPPGA16P General Description

These quad differential drivers are TTL input-topseudo-ECL-differential-output used for digital data transmission over balanced transmission lines. All devices in this family have four drivers with a single enable control in a common package. These drivers are compatible with many receivers, includi.

BPPGA16P Datasheet (326.60 KB)

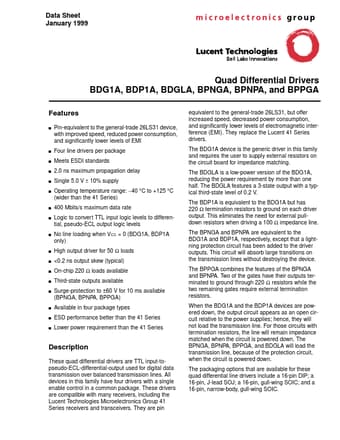

BPPGA16P Datasheet Preview — Preview of BPPGA16P PDF

Datasheet Details

Part number:

BPPGA16P

Manufacturer:

Agere Systems

File Size:

326.60 KB

Description:

Quad differential drivers bdg1a/ bdp1a/ bdgla/ bpnga/ bpnpa/ and bppga.
