D2502G - 1.5 m m D2500-Type Digital Isolated DFB Laser Module

Description

The D2500-Type Digital Isolated DFB Laser Module contains an internally cooled, InGaAsP, MQW, distributed-feedback (DFB) laser designed for 1.5 µm applications.

Features

  • s s s Integrated optical isolator SONET/SDH compatible up to OC-48/STM-16 High-performance, multiquantum-well (MQW), distributed-feedback (DFB) laser Low dispersion penalty for long-reach and extended-reach.

📥 Download Datasheet

Datasheet preview – D2502G

Datasheet Details

Part number D2502G
Manufacturer Agere Systems
File Size 267.52 KB
Description 1.5 m m D2500-Type Digital Isolated DFB Laser Module
Datasheet download datasheet D2502G Datasheet
Additional preview pages of the D2502G datasheet.

📁 Similar Datasheet

Other Datasheets by Agere Systems
  • D2500 - 1.5 m m D2500-Type Digital Isolated DFB Laser Module
  • D2511D - 1.5 m m D2500-Type Digital Isolated DFB Laser Module
  • D2511G - 1.5 m m D2500-Type Digital Isolated DFB Laser Module
  • D2517D - 1.5 m m D2500-Type Digital Isolated DFB Laser Module
  • D2517G - 1.5 m m D2500-Type Digital Isolated DFB Laser Module
  • D2525P - Wavelength-Selected D2525P Isolated DFB Laser Module with PMF
  • D2525P40 - Wavelength-Selected D2525P Isolated DFB Laser Module with PMF
  • D2525P41 - Wavelength-Selected D2525P Isolated DFB Laser Module with PMF

Full PDF Text Transcription

Click to expand full text

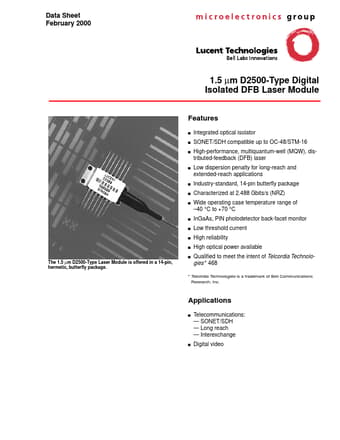

Data Sheet February 2000 1.5 µm D2500-Type Digital Isolated DFB Laser Module Features s s s Integrated optical isolator SONET/SDH compatible up to OC-48/STM-16 High-performance, multiquantum-well (MQW), distributed-feedback (DFB) laser Low dispersion penalty for long-reach and extended-reach applications Industry-standard, 14-pin butterfly package Characterized at 2.488 Gbits/s (NRZ) Wide operating case temperature range of –40 °C to +70 °C InGaAs, PIN photodetector back-facet monitor Low threshold current High reliability High optical power available Qualified to meet the intent of Telcordia Technologies * 468 s s s s s s s s s The 1.5 µm D2500-Type Laser Module is offered in a 14-pin, hermetic, butterfly package.
