D370-02A

D370-Type Digital Uncooled Laser Module

D370-02A Features

* s Eight-pin package suitable for SONET/SDH applications MQW F-P 1.3 µm laser with single-mode fiber pigtail Wide operating temperature range:

* 40 °C to +85 °C No TEC required High output power: typically 1.0 mW peak power coupled into single-mode fiber; 0.2 mW and 2.0 mW versions available He

D370-02A General Description

The D370-type uncooled laser module consists of a laser diode coupled to a single-mode fiber pigtail. The device is available in a standard, 8-pin configuration (see Figure 1 and/or Table 1) and is ideal for long-haul (SONET) and other digital applications. The module includes a multiquantum-well Fabr.

D370-02A Datasheet (53.11 KB)

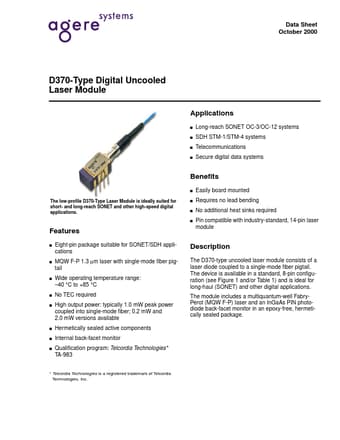

Preview of D370-02A PDF

Datasheet Details

Part number:

D370-02A

Manufacturer:

Agere Systems

File Size:

53.11 KB

Description:

D370-type digital uncooled laser module.
Data Sheet October 2000 D370-Type Digital Uncooled Laser Module Applications s s s s Long-reach SONET OC-3/OC-12 systems SDH STM-1/STM-4 systems Tel.
