D372-21GS D372-Type Digital Uncooled DFB Laser Module

The D372-type uncooled laser module consists of a laser diode coupled to a single-mode ﬁber pigtail. The device is available in a standard, 8-pin conﬁguration (see Figure 1 and/or Table 1) and is ideal for long-reach (SONET) and other high-speed digital applications. The module includes a narrow lin.

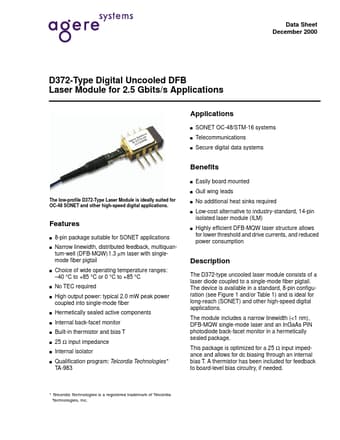

Data Sheet December 2000 D372-Type Digital Uncooled DFB Laser Module for 2.5 Gbits/s Applications Applications s s s SONET OC-48/STM-16 systems Telecommunications Secure digital data systems Beneﬁts s s Easily board mounted Gull wing leads No additional heat sinks required Low-cost alternative to industry-standard, 14-pin isolated laser module (ILM) Highly efﬁcient DFB-MQW laser structure allows for lower threshold and drive currents, and reduced power consumption The low-proﬁle D372-Type L.

D372-21GS Features

* s s s 8-pin package suitable for SONET applications Narrow linewidth, distributed feedback, multiquantum-well (DFB-MQW)1.3 µm laser with singlemode ﬁber pigtail Choice of wide operating temperature ranges:

* 40 °C to +85 °C or 0 °C to +85 °C No TEC required High output power: typical 2.0 mW
