D374

D374-Type Digital Uncooled 2.5 Gbits/s Laser Module

D374 Features

* s s 2.5 Gbits/s operation Eight-pin package suitable for SONET/SDH applications MQW F-P 1.3 µm laser with single-mode fiber pigtail Wide operating temperature range:

* 40 °C to +85 °C No TEC required 25 Ω input impedance High output power: typically 1.0 mW peak power coupled into single-mode

D374 General Description

The D374-Type Uncooled Laser Module consists of a laser diode coupled to a single-mode fiber pigtail. The device is available in a standard, 8-pin configuration (see Figure 1 and/or Table 1) and is ideal for short-reach and other high-speed digital applications. It is developed specifically for 2.5 Gbi.

D374 Datasheet (56.14 KB)

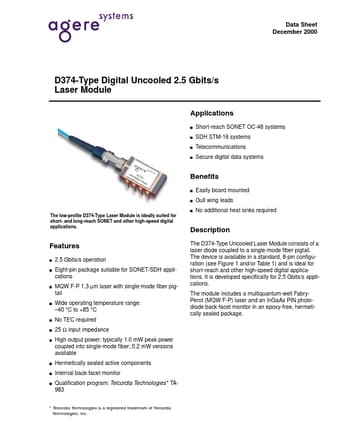

Preview of D374 PDF

Datasheet Details

Part number:

D374

Manufacturer:

Agere Systems

File Size:

56.14 KB

Description:

D374-type digital uncooled 2.5 gbits/s laser module.
Data Sheet December 2000 D374-Type Digital Uncooled 2.5 Gbits/s Laser Module Applications s s s s Short-reach SONET OC-48 systems SDH STM-16 systems.
