DSP1648C - Host-Based Controller V.92 Modem Chip Set

Agere Systems

📥 Download Datasheet

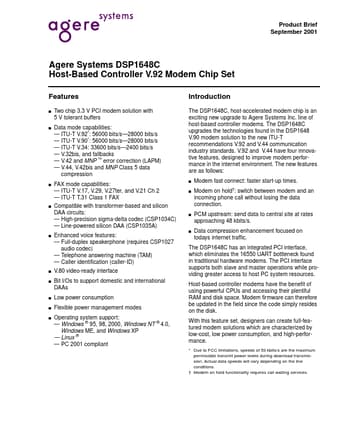

DSP1648C Datasheet Preview — Preview of DSP1648C PDF

Datasheet Details

Part number	DSP1648C
Manufacturer	Agere Systems
File Size	74.18 KB
Description	Host-Based Controller V.92 Modem Chip Set
Datasheet	DSP1648C_AgereSystems.pdf

DSP1648C Product details

Description

DSP1648C The Agere Systems DSP1648C chip set is a two-chip solution consisting of Agere Systems DSP1648C digital signal processor, a CSP1035A silicon data access arrangement (DAA) or a CSP1034 line codec.An optional CSP1027 audio codec is required to support full-duplex speakerphone.It supports V.92, V.90, V.34 data, and FAX rates up to 14.4 kbits/s.The hostbased controller solution is compatible with Windows 95 and Windows 98 telephony application program interface (TAPI), including the unim

Features

s Introduction The DSP1648C, host-accelerated modem chip is an exciting new upgrade to Agere Systems Inc. line of host-based controller modems. The DSP1648C upgrades the technologies found in the DSP1648 V.90 modem solution to the new ITU-T recommendations V.92 and V.44 communication industry standards. V.92 and V.44 have four innovative features, designed to improve modem performance in the internet environment. The new features are as follows: s s Two chip 3.3 V PCI modem solution with 5 V t.
