L9500A High-Voltage Ringing SLIC

This device is optimized to provide battery feed, ringing, and supervision on short-loop plain old telephone service (POTS) loops. This device provides power ring to the subscriber loop through amplification of a low-voltage input. It provides forward and reverse battery feed states, onhook transmis.

Preliminary Data Sheet September 2001 L9500A High-Voltage Ringing SLIC for VoIP Applications L9500A Introduction The Agere Systems Inc. L9500A is a subscriber line interface circuit that is optimized for short-loop, power-sensitive applications. This device provides the complete set of line interface functionality (including power ringing) needed to interface to a subscriber loop. This device has the capability to operate with a VCC supply of 3.3 V or 5 V and is designed to minimize external c.

L9500A Features

* s Differential ringing and codec interface s Onboard ringing generation s Three ringing input options:

* Sine wave

* PWM

* Logic level square wave s Flexible VCC options:

* 5 V or 3.3 V VCC

* No

* 5 V required s Battery switch to minimize off-hook power

L9500A-AgereSystems.pdf

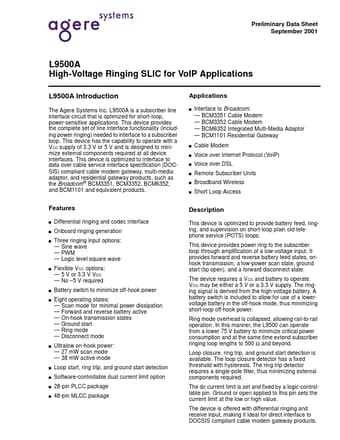

L9500A Datasheet Preview — Preview of L9500A PDF

Datasheet Details

Part number:

L9500A

Manufacturer:

Agere Systems

File Size:

364.25 KB

Description:

High-voltage ringing slic.
