AT42070, AT4 - Up to 6 GHz Medium Power Silicon Bipolar Transistor

Agilent(Hewlett-Packard)

The AT42070 by Agilent(Hewlett-Packard) is a Up to 6 GHz Medium Power Silicon Bipolar Transistor. Below is the official datasheet preview.

📥 Download Datasheet

AT42070 Up to 6 GHz Medium Power Silicon Bipolar Transistor by Agilent(Hewlett-Packard) - Datasheet Preview — Official preview page of the **AT42070** Up to 6 GHz Medium Power Silicon Bipolar Transistor datasheet (Agilent(Hewlett-Packard)).

Datasheet Details

Part number	AT42070, AT4
Manufacturer	Agilent(Hewlett-Packard)
File Size	52.47 KB
Description	Up to 6 GHz Medium Power Silicon Bipolar Transistor
Datasheet	AT4-2070.pdf
Note	This datasheet PDF includes multiple part numbers: AT42070, AT4. Please refer to the document for exact specifications by model.

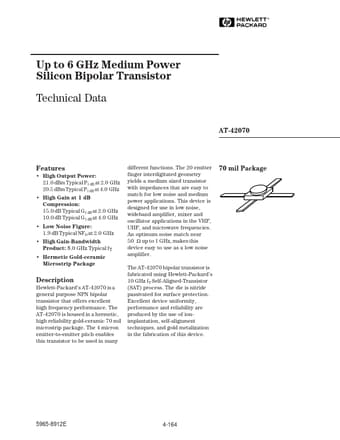

Additional preview pages of the AT42070 datasheet.

AT42070 Product details

Description

Hewlett-Packard’s AT-42070 is a general purpose NPN bipolar transistor that offers excellent high frequency performance.

Features

High Output Power: 21.0 dBm Typical P1 dB at 2.0␣ GHz 20.5 dBm Typical P1 dB at 4.0␣ GHz.
High Gain at 1 dB Compression: 15.0 dB Typical G1 dB at 2.0␣ GHz 10.0 dB Typical G1 dB at 4.0␣ GHz.
Low Noise Figure: 1.9 dB Typical NFO at 2.0␣ GHz.
High Gain-Bandwidth Product: 8.0 GHz Typical fT.
Hermetic Gold-ceramic Microstrip Package different functions. The 20 emitter finger interdigitated geometry yields a medium sized transistor with impedances that ar.
