VTO-8060 Datasheet, Oscillators, Agilent(Hewlett-Packard)

VTO-8060 Features

• Oscillators
• 600 MHz to 10.5 GHz Coverage
• Fast Tuning
• +7 to +13 dBm Output Power
• ± 1.5 dB Output Flatness
• Hermetic Thin-film Construction Descripti

PDF File Details

Part number:

VTO-8060

Manufacturer:

Agilent(Hewlett-Packard)

File Size:

918.09kb

Download:

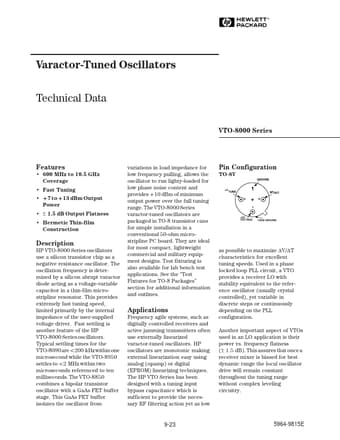

📄 Datasheet

Description:

Varactor-tuned oscillators. HP VTO-8000 Series oscillators use a silicon transistor chip as a negative resistance oscillator. The oscillation frequency is determ

VTO-8060 Application

• Applications See the “Test Fixtures for TO-8 Packages” section for additional information and outlines. Pin Configuration TO-8V GROUND +V TUNE 2 1
