Description

Agilent ABA-53563 3.5 GHz Broadband Silicon RFIC Amplifier Data Sheet .
Agilent’s ABA-53563 is an economical, easy-to-use, internally 50-ohm matched silicon monolithic amplifier that offers excellent gain and flat broadban.

📥 Download Datasheet

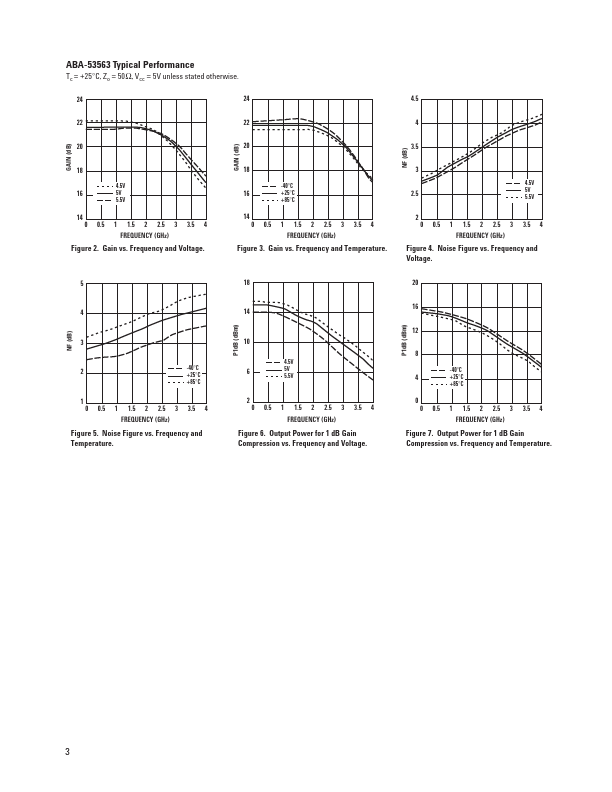

ABA53563 Datasheet Preview — Preview of ABA53563 PDF

Datasheet Specifications

Part number: ABA53563
Manufacturer: Agilent Technologies
File Size: 99.06 KB
Datasheet: ABA53563_AgilentTechnologies.pdf
Description: 3.5 Ghz Broadband Silicon RFIC Amplifier

Features

* Operating frequency: DC ~ 3.5 GHz
* 21.5 dB gain
* VSWR < 2.0 throughout operating frequency

Applications

* They are designed for low cost gain blocks in cellular applications, DBS tuners, LNB and other wireless communications systems. ABA-53563 is fabricated using Agilent’s HP25 silicon bipolar process, which employs a doublediffused single polysilicon process with self-aligned submicron emitter geometr
