HPFC-5000, HPFC-5000C Datasheet - Agilent Technologies

HPFC-5000 Fibre Channel Interface Controller

Tachyon is a fundamental building block compatible with Agilent Technologies’ Fibre Channel solution which includes interface controllers, physical link modules, adapters, switches and disk drives. .c m o The Tachyon architecture supports both networking and mass storage connections to provide a .

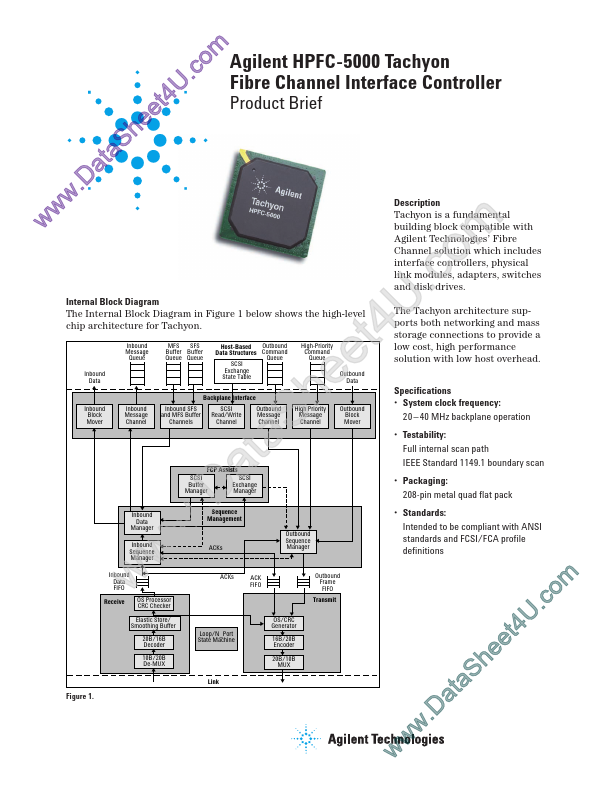

w w at .D w h S a ee U 4 t mAgilent HPFC-5000 Tachyon o .c Fibre Channel Interface Controller Product Brief Internal Block Diagram The Internal Block Diagram in Figure 1 below shows the high-level chip architecture for Tachyon. Inbound Message Queue Inbound Data MFS SFS Buffer Buffer Queue Queue Outbound Host-Based Data Structures Command Queue SCSI Exchange State Table High-Priority Command Queue Backplane Interface Inbound Block Mover Inbound Message Channel Inbound SFS and MFS Buffer .

HPFC-5000 Features

* Single chip Fibre Channel interface (no I/O processor required)

* Supports 1062, 531 and 266 Mbaud links

* Supports 3 topologies

* direct connect, fabric and Fibre Channel Arbitrated Loop (FC-AL)

* Supports Fibre Channel Class 1, 2 and 3 services

* S
