HSMA-C120

(HSMx-C120) Right Angle Chip LED

HSMA-C120 Features

* Small size right angle mount

* 0603 industry standard footprint

* Operating temperature range of

* 30˚C to +85˚C

* Available in various colors Description This series of right angle mount ChipLEDs is designed with the smallest footprint to achieve high densi

HSMA-C120 General Description

This series of right angle mount ChipLEDs is designed with the smallest footprint to achieve high density of components on board. They have the industry standard footprint of 1.6 mm x 1.0 mm and a height of only 0.6 mm. This makes them very suitable for cellular phone and mobile equipment backlighti.

HSMA-C120 Datasheet (236.89 KB)

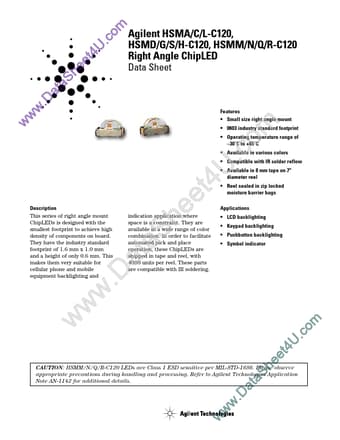

Preview of HSMA-C120 PDF

Datasheet Details

Part number:

HSMA-C120

Manufacturer:

Agilent Technologies

File Size:

236.89 KB

Description:

(hsmx-c120) right angle chip led.
