5962-98001 Logic Gate Optocouplers

📥 Download Datasheet Datasheet Preview Page 1

Description

Hermetically Sealed, High Speed, High CMR, Logic Gate Optocouplers Technical Data 6N134 * 81028 HCPL-563X HCPL-663X HCPL-565X 5962-98001 HCPL-268.

📥 Download Datasheet

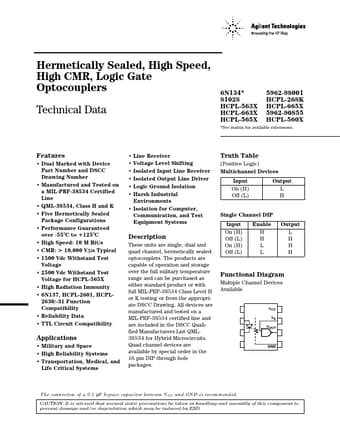

Preview of 5962-98001 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
5962-98001
Manufacturer
Agilent
File Size
249.45 KB
Datasheet
5962-98001-Agilent.pdf
Description
Logic Gate Optocouplers

Features

* Dual Marked with Device Part Number and DSCC Drawing Number
* Manufactured and Tested on a MIL-PRF-38534 Certified Line
* QML-38534, Class H and K
* Five Hermetically Sealed Package Configurations
* Performance Guaranteed over -55°C to +125°C
* High

Applications

* Military and Space
* High Reliability Systems
* Transportation, Medical, and Life Critical Systems
* Line Receiver
* Voltage Level Shifting
* Isolated Input Line Receiver
* Isolated Output Line Driver
