83024 - High Gain Optocouplers

Agilent

📥 Download Datasheet

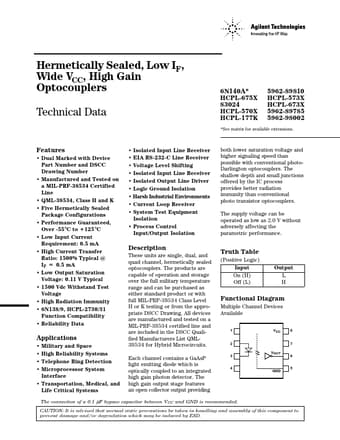

83024 Datasheet Preview — Preview of 83024 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	83024
Manufacturer	Agilent
File Size	309.99 KB
Description	High Gain Optocouplers
Datasheet	83024-Agilent.pdf

83024 Product details

Features

Dual Marked with Device Part Number and DSCC Drawing Number.
Manufactured and Tested on a MIL-PRF-38534 Certified Line.
QML-38534, Class H and K.
Five Hermetically Sealed Package Configurations.
Performance Guaranteed, Over -55°C to +125°C.
Low Input Current Requirement: 0.5 mA.
High Current Transfer Ratio: 1500% Typical @ IF = 0.5 mA.
Low Output Saturation Voltage: 0.11 V Typical.
1500 Vdc Withstand Test Voltage.
