ADCS-1021 CMOS Image Sensors

The ADCS-1021 and ADCS-2021 CMOS Image Sensors capture high quality, low noise images while consuming very low power. These parts integrate a highly sensitive active pixel photodiode array with timing control and onboard A/D conversion. Available in either VGA (640x480) or CIF (352x288) resolution i.

ADCS-1021 Features

* Programmable window size ranging from the full array down to a 4 x 4 pixel window

* Programmable panning capability which allows a specified window (minimum 4x4 pixels) to be located anywhere on the sensor array

* Integrated programmable gain amplifiers with independent gai

ADCS-1021-Agilent.pdf

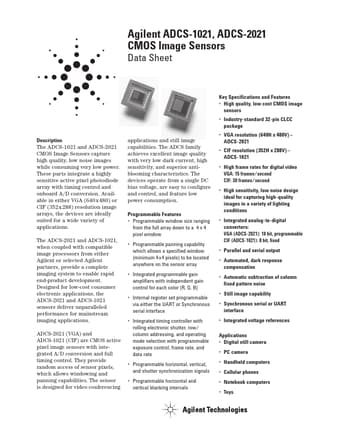

ADCS-1021 Datasheet Preview — Preview of ADCS-1021 PDF

Datasheet Details

Part number:

ADCS-1021

Manufacturer:

Agilent

File Size:

95.92 KB

Description:

Cmos image sensors.
