DRT1-23xx

Digital Radio Transmitter Modules

DRT1-23xx Features

* Integrated Microwave/ Millimeter-Wave Modules

* Low Phase Noise

* Silicon Bipolar VCO

* Full Band Tuning

* GaAs MMIC Output Stage

* Sample Output for Phase Locking

* Excellent Tuning Linearity

* 30 dB Attenuator

* Waveguide/SM

DRT1-23xx General Description

This digital radio transmitter module is designed for medium data rate point to point communication systems operating at 23␣ GHz. This module offers excellent phase noise performance and can be easily phase locked to a frequency reference. The transmitter module provides +20 dBm of output power, ide.

DRT1-23xx Datasheet (90.40 KB)

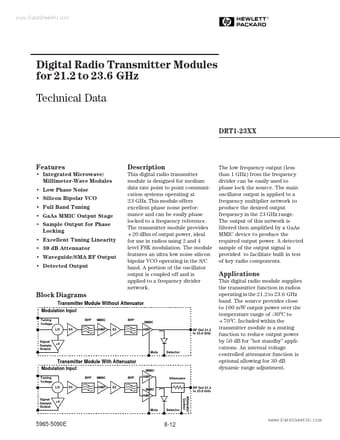

Preview of DRT1-23xx PDF

Datasheet Details

Part number:

DRT1-23xx

Manufacturer:

Agilent

File Size:

90.40 KB

Description:

Digital radio transmitter modules.
