HCMS-2972

High Performance CMOS 5 x 7 Alphanumeric Displays

HCMS-2972 Features

* Easy to Use

* Interfaces Directly with Microprocessors

* 0.15" Character Height in 4, 8, and 16 (2x8) Character Packages

* 0.20" Character Height in 4 and 8 Character Packages

* Rugged X- and Y-Stackable Package

* Serial Input

* Convenient Br

HCMS-2972 General Description

The HCMS-29xx series are high performance, easy to use dot matrix displays driven by on-board CMOS ICs. Each display can be directly interfaced with a microprocessor, thus eliminating the need for cumbersome interface components. The serial IC interface allows higher character count information disp.

HCMS-2972 Datasheet (282.55 KB)

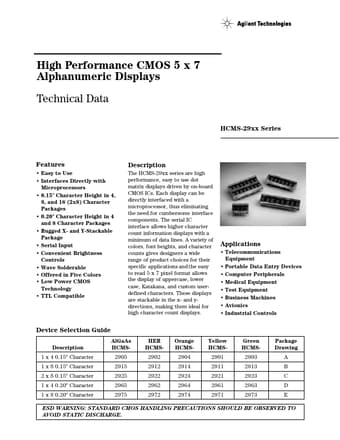

Preview of HCMS-2972 PDF

Datasheet Details

Part number:

HCMS-2972

Manufacturer:

Agilent

File Size:

282.55 KB

Description:

High performance cmos 5 x 7 alphanumeric displays.
