HCMS-2975, HCMS-2905 Datasheet - Agilent

HCMS-2975, HCMS-2905, High Performance CMOS 5 x 7 Alphanumeric Displays

High Performance CMOS 5 x 7 Alphanumeric Displays Technical Data HCMS-29xx Series .
The HCMS-29xx series are high performance, easy to use dot matrix displays driven by on-board CMOS ICs.

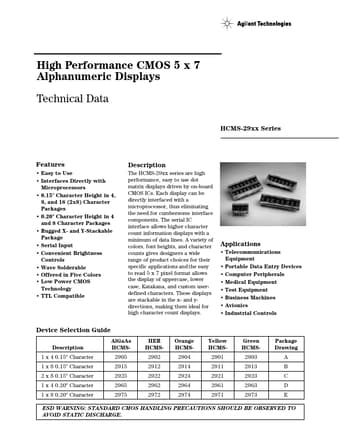

HCMS-2905-Agilent.pdf

HCMS-2975 Datasheet Preview — This datasheet PDF includes multiple part numbers: HCMS-2975, HCMS-2905. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HCMS-2975, HCMS-2905

Manufacturer:

Agilent

File Size:

282.55 KB

Description:

High Performance CMOS 5 x 7 Alphanumeric Displays

Note:

This datasheet PDF includes multiple part numbers: HCMS-2975, HCMS-2905.
Please refer to the document for exact specifications by model.

Features

* Easy to Use
* Interfaces Directly with Microprocessors
* 0.15" Character Height in 4, 8, and 16 (2x8) Character Packages
* 0.20" Character Height in 4 and 8 Character Packages
* Rugged X- and Y-Stackable Package
* Serial Input
* Convenient Br

Applications

* and the easy to read 5 x 7 pixel format allows the display of uppercase, lower case, Katakana, and custom userdefined characters. These displays are stackable in the x- and ydirections, making them ideal for high character count displays. Applications
* Telecommunications Equipment
