Agilent HDSP-301x/303x Series HDSP-561x/563x Series 10 mm and 13 mm Slim Font Seven Segment Displays Data Sheet .
These slim font seven segment displays incorporate a new slim font character design.

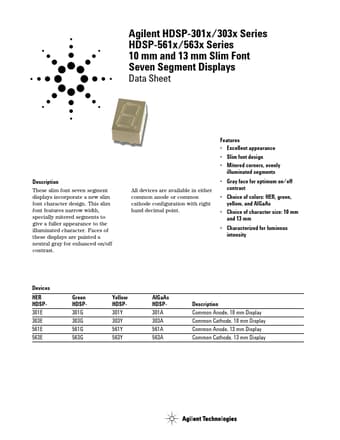

datasheet Preview Page 1 from Datasheet4u.com

HDSP-301x_Hewlett-Packard.pdf

HDSP-561G Datasheet Preview — This datasheet PDF includes multiple part numbers: HDSP-561G, HDSP-301x_Hewlett. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HDSP-561G, HDSP-301x_Hewlett

Manufacturer:

Agilent

File Size:

88.56 KB

Description:

Seven Segment Displays

Note:

This datasheet PDF includes multiple part numbers: HDSP-561G, HDSP-301x_Hewlett.
Please refer to the document for exact specifications by model.

Features

* narrow width, specially mitered segments to give a fuller appearance to the illuminated character. Faces of these displays are painted a neutral gray for enhanced on/off contrast. All devices are available in either common anode or common cathode configuration with right hand decimal point. Featur
