HFBR-2522

(HFBR-x5xx Series) Versatile Link The Versatile Fiber Optic Connection

HFBR-2522 Features

* Low Cost Fiber Optic Components

* Enhanced Digital Links dc-5 MBd

* Extended Distance Links up to 120 m at 40 kBd

* Low Current Link: 6 mA Peak Supply Current

* Horizontal and Vertical Mounting

* Interlocking Feature

* High Noise Immunity

HFBR-2522 General Description

The Versatile Link series is a complete family of fiber optic link components for applications requiring a low cost solution. The HFBR-0501 series includes transmitters, receivers, connectors and cable specified for easy design. This series of components is ideal for solving problems with voltage is.

HFBR-2522 Datasheet (658.37 KB)

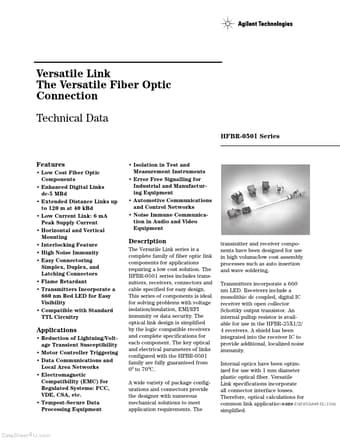

Preview of HFBR-2522 PDF

Datasheet Details

Part number:

HFBR-2522

Manufacturer:

Agilent

File Size:

658.37 KB

Description:

(hfbr-x5xx series) versatile link the versatile fiber optic connection.
