HSMP-3895

(HSMP-38xx / HSMP-48xx) Surface Mount PIN Diodes

HSMP-3895 Features

* Diodes Optimized for: Low Current Switching Low Distortion Attenuating Ultra-Low Distortion Switching Microwave Frequency Operation

* Surface Mount SOT-23 and SOT-143 Packages Single and Dual Versions Tape and Reel Options Available

* Low Failure in Time (FIT) Rate[1] Note:

HSMP-3895 General Description

Applications The HSMP-380X and HSMP-381X series are specifically designed for low distortion attenuator applications. The HSMP-382X series is optimized for switching applications where ultra-low resistance is required. The HSMP-3880 switching diode is an ultra low distortion device optimized for hig.

HSMP-3895 Datasheet (137.08 KB)

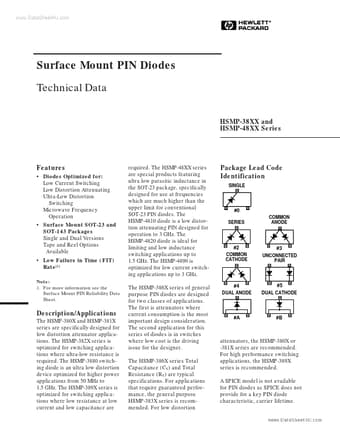

Preview of HSMP-3895 PDF

Datasheet Details

Part number:

HSMP-3895

Manufacturer:

Agilent

File Size:

137.08 KB

Description:

(hsmp-38xx / hsmp-48xx) surface mount pin diodes.
