DS24W, DS22W - SCHOTTKY BARRIER RECTIFIERS

DS24W Description

AiT Components Inc.www.ait-components.com DS22W~DS220W SCHOTTKY BARRIER RECTIFIERS REVERSE VOLTAGE 20 TO 200V FORWARD CURRENT 2A .
The DS22W~DS220W are available in SOD-123 Package ORDERING INFORMATION Package Type Part Number DS22W DS24W DS26W SOD-123 DS28W DS210W DS212W.

DS24W Features

* Metal silicon junction, majority carrier conduction

DS24W Applications

* Low power loss, high efficiency
* High forward surge current capability
* For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DS24W, DS22W. Please refer to the document for exact specifications by model.

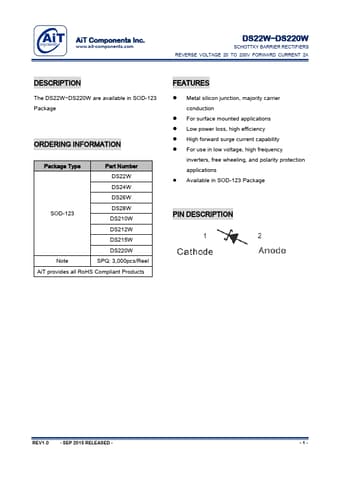

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DS24W, DS22W
Manufacturer
AiT Components
File Size
545.19 KB
Datasheet
DS22W-AiTComponents.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: DS24W, DS22W.
Please refer to the document for exact specifications by model.
