A4788 Datasheet - AiT Semiconductor

A4788 POWER SWITCH

The A4788 is intended for applications where heavy capacitive loads and short circuits are likely to be encountered. The A4788 is an integrated 80mΩ (TYP) power switch for self-powered and bus powered universal series bus (USB) applications. The A4788 is internally current limited and has thermal sh.

A4788 Features

* 80mΩ (TYP) High-side P-Channel MOSFET

* Low Quiescent Current

* Input Voltage from 2.5V to5.5V

* Three Current Limit Levels 1.1A, 2.1A, 2.6A

* Maximum Shutdown Current ≤1uA

* Soft-Start Function

* Under-Voltage Lockout Protection for VIN

* No Reversed Leakage Curren

A4788 Datasheet (1.11 MB)

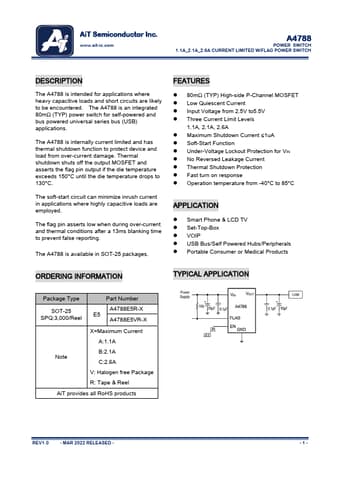

A4788 Datasheet Preview — Preview of A4788 PDF

Datasheet Details

Part number:

A4788

Manufacturer:

AiT Semiconductor

File Size:

1.11 MB

Description:

Power switch.
