A7120 2A 1.4MHz 5.5V SYNCHRONOUS BUCK CONVERTER

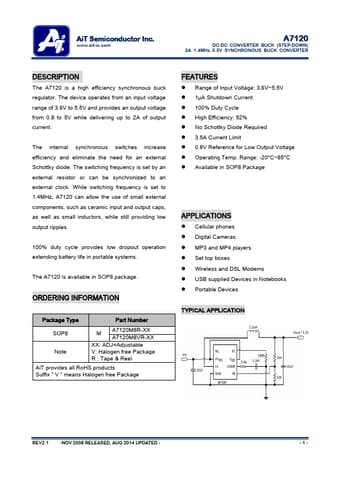

📥 Download Datasheet  Datasheet Preview Page 1

Description

AiT Semiconductor Inc.www.ait-ic.com A7120 DC-DC CONVERTER BUCK (STEP-DOWN) 2A 1.4MHz 5.5V SYNCHRONOUS BUCK CONVERTER .
The A7120 is a high efficiency synchronous buck regulator.

📥 Download Datasheet

Preview of A7120 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
A7120
Manufacturer
AiT Semiconductor
File Size
583.36 KB
Datasheet
A7120-AiTSemiconductor.pdf
Description
2A 1.4MHz 5.5V SYNCHRONOUS BUCK CONVERTER

Features

* Range of Input Voltage: 3.6V~5.5V
* 1μA Shutdown Current
* 100% Duty Cycle
* High Efficiency: 92%
* No Schottky Diode Required
* 3.5A Current Limit
* 0.8V Reference for Low Output Voltage
* Operating Temp. Range: -20°C~85°C
* Available in SOP8 Package APPLICATIO

Applications

* Cellular phones
* Digital Cameras
* MP3 and MP4 players
* Set top boxes
* Wireless and DSL Modems
* USB supplied Devices in Notebooks
* Portable Devices TYPICAL APPLICATION REV2.1 -NOV 2008 RELEASED, AUG 2014 UPDATED - -1- AiT Semiconductor Inc. www. ait-ic. com A712
