A8180 - 1.4A STEP-DOWN LED DRIVER

Datasheet Summary

Description

The A8180 is a continuous mode inductive step-down converter, designed for driving single or multiple series connected LEDs efficiently from a voltage source higher than the LED voltage.

The device operates from an input supply between 6V and 36V and provides an externally output current up to 1.4A.

Features

  • Simple low parts count.
  • Internal 36V NDMOS switch.
  • Up to 1.4A output current.
  • Single pin on/off and brightness control using DC voltage or PWM.
  • Soft Start.
  • High efficiency (up to 97%).
  • Wide input voltage range: 6V to 36V.
  • Output shutdown.
  • Up to 1MHz switching frequency.
  • Inherent open-circuit LED protection.
  • Typical 3% output current accuracy.
  • High-side current sense.
  • Hysteretic control: no compensation.
  • Adjustable constant LE.

📥 Download Datasheet

Datasheet preview – A8180

Datasheet Details

Part number A8180
Manufacturer AiT Semiconductor
File Size 825.32 KB
Description 1.4A STEP-DOWN LED DRIVER
Datasheet download datasheet A8180 Datasheet
Additional preview pages of the A8180 datasheet.

📁 Similar Datasheet

  • A8180SLU - Low Dropout Voltage Dropper (Sanken electric)
  • A8181SLB - Surface-Mount/ Low Circuit Current/ Low Dropout Voltage Dropper Type (Sanken electric)
  • A8181SLB - LOW-DROPOUT/ 5 V REGULATOR . HIGH EFFICIENCY (Allegro MicroSystems)
  • A8182SL - LOW-DROPOUT/ 3 V REGULATOR . HIGH EFFICIENCY (Allegro MicroSystems)
  • A8183SLU - Surface-Mount/ Low Quiescent Current/ Low Dropout Voltage Dropper Type (Sanken electric)
  • A8183SLU - 3V REGULATOR (Allegro MicroSystems)
  • A8184SLT - Surface-Mount/ Low Quiescent Current/ Low Dropout Voltage Dropper Type (Sanken electric)
  • A8184SLT - LOW-DROPOUT/ 3 V REGULATOR . HIGH EFFICIENCY (Allegro MicroSystems)
  • A8186SLU - Surface-Mount/ Low Quiescent Current/ Low Dropout Voltage Dropper Type (Sanken electric)
  • A8186SLU - LOW-DROPOUT/ 3.3 V REGULATOR . HIGH EFFICIENCY (Allegro MicroSystems)
Other Datasheets by AiT Semiconductor
  • A8180A - LED LIGHTING DRIVER
  • A8181 - HIGH BRIGHTNESS LED DRIVER
  • A8113 - HIGH POWER WHITE LED DRIVER
  • A8160A - LED BACKLIGHT DRIVER ASYNCHRONIES BOOST
  • A8168 - SERIES WHITE LED BACKLIGHT DRIVER / 1MHz PWM STEP-UP DC-DC CONVERTER
  • A8169-020 - LED BACKLIGHT DRIVER
  • A8169-025 - LED BACKLIGHT DRIVER / PWM MODE 23V STEP-UP SERIES WHITE LED DRIVER
  • A8176 - LED DRIVER

Full PDF Text Transcription

Click to expand full text

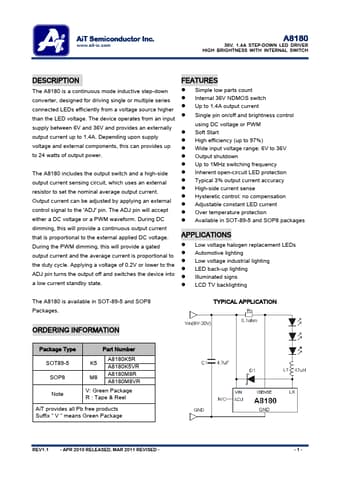

AiT Semiconductor Inc. www.ait-ic.com A8180 36V, 1.4A STEP-DOWN LED DRIVER HIGH BRIGHTNESS WITH INTERNAL SWITCH DESCRIPTION The A8180 is a continuous mode inductive step-down converter, designed for driving single or multiple series connected LEDs efficiently from a voltage source higher than the LED voltage. The device operates from an input supply between 6V and 36V and provides an externally output current up to 1.4A. Depending upon supply voltage and external components, this can provides up to 24 watts of output power. The A8180 includes the output switch and a high-side output current sensing circuit, which uses an external resistor to set the nominal average output current. Output current can be adjusted by applying an external control signal to the 'ADJ' pin.
