AP8269 - PWM CONTROLLER

Product Overview

AiT Semiconductor

📥 Download Datasheet

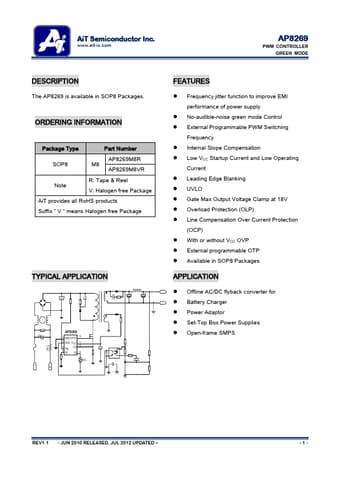

AP8269 PWM CONTROLLER by AiT Semiconductor - Datasheet Preview — Datasheet preview – AP8269

Datasheet Details

Part number	AP8269
Manufacturer	AiT Semiconductor
File Size	347.55 KB
Description	PWM CONTROLLER
Datasheet	AP8269 Datasheet
Additional preview pages of the AP8269 datasheet.

Product details

Description

The AP8269 is available in SOP8 and DIP8 Packages.

Features

Frequency jitter function to improve EMI performance of power supply.
No-audible-noise green mode Control.
External Programmable PWM Switching Frequency.
Internal Slope Compensation.
Low VCC Startup Current and Low Operating Current.
Leading Edge Blanking.
UVLO.
Gate Max Output Voltage Clamp at 18V.
Overload Protection (OLP).
Line Compensation Over Current Protection (OCP).
With or without VCC OVP.
External programmable OTP.
Avail.
