BC846BDW

The BC846BDW is GENERAL PURPOSE TRANSISTOR designed by AiT Semiconductor.

Product Overview

📥 Download Datasheet

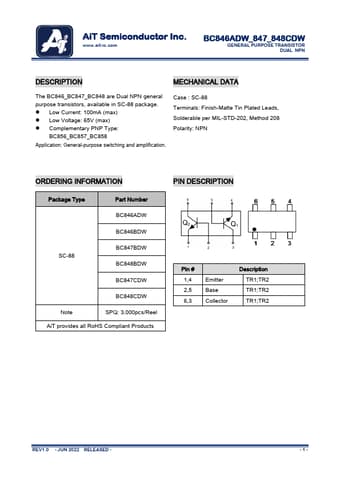

Datasheet preview – BC846BDW

Datasheet Details

Part number BC846BDW, BC846ADW
Manufacturer AiT Semiconductor
File Size 909.35 KB
Description GENERAL PURPOSE TRANSISTOR
Datasheet download datasheet BC846ADW-AiTSemiconductor.pdf
Note This datasheet PDF includes multiple part numbers: BC846BDW, BC846ADW.
Please refer to the document for exact specifications by model.
Additional preview pages of the BC846BDW datasheet.

Product details

Description

MECHANICAL DATA The BC846_BC847_BC848 are Dual NPN general purpose transistors, available in SC-88 package. Low Current: 100mA (max) Low Voltage: 65V (max) Complementary PNP Type: BC856_BC857_BC858 Application: General-purpose switching and amplification.Case : SC-88 Terminals: Finish-Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 Polarity: NPN ORDERING INFORMATION Package Type Part Number BC846ADW BC846BDW SC-88 BC847BDW BC848BDW BC847CDW BC848CDW
