MSZ5226B, MSZ5221B - ZENER DIODE

AiT Semiconductor

📥 Download Datasheet

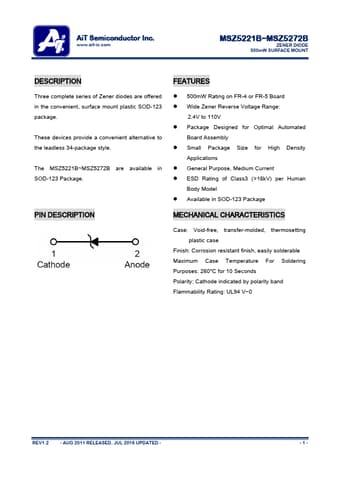

MSZ5226B Datasheet Preview — This datasheet PDF includes multiple part numbers: MSZ5226B, MSZ5221B. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: MSZ5226B, MSZ5221B
Manufacturer: AiT Semiconductor
File Size: 635.39 KB
Datasheet: MSZ5221B-AiTSemiconductor.pdf
Description: ZENER DIODE
Note: This datasheet PDF includes multiple part numbers: MSZ5226B, MSZ5221B.
Please refer to the document for exact specifications by model.

MSZ5226B Product details

Features

Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD-123 package. These devices provide a convenient alternative to the leadless 34-package style. The MSZ5221B~MSZ5272B are available in SOD-123 Package.
500mW Rating on FR-4 or FR-5 Board.
Wide Zener Reverse Voltage Range: 2.4V to 110V.
Package Designed for Optimal Automated Board Assembly.
Small Package Size for High Density.
