S3GBF SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIERS

AiT Semiconductor

Description

AiT Semiconductor Inc.www.ait-ic.com S3ABF~S3MBF SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIERS REVERSE VOLTAGE 50 TO 1000V FORWARD CURRENT 3A DE.
FEATURES The S3ABF~S3MBF are available in SMBF package. ORDERING INFORMATION For surface mounted applications Low prof.

📥 Download Datasheet

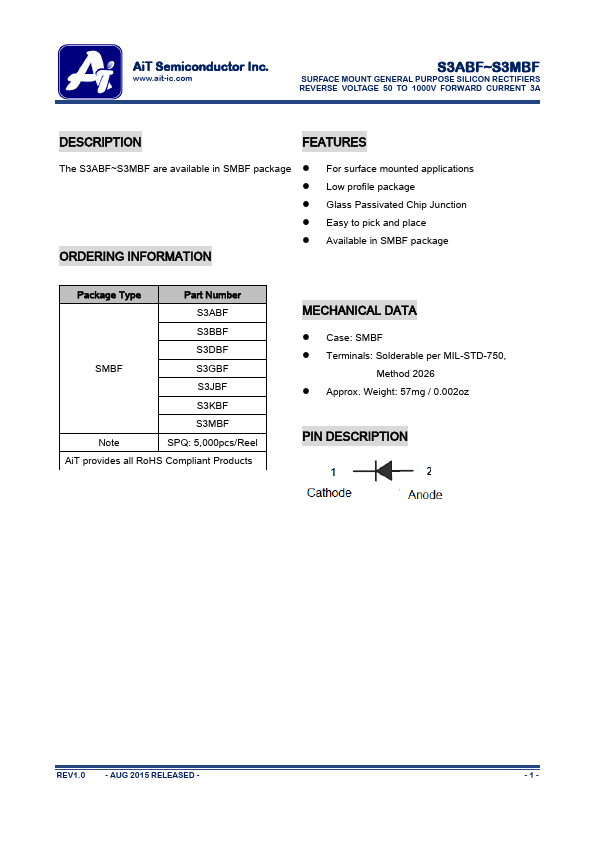

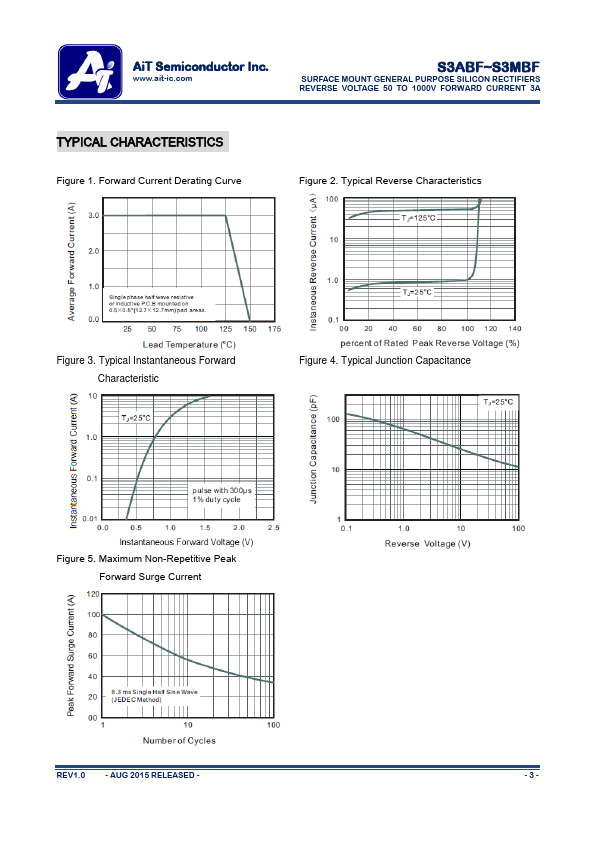

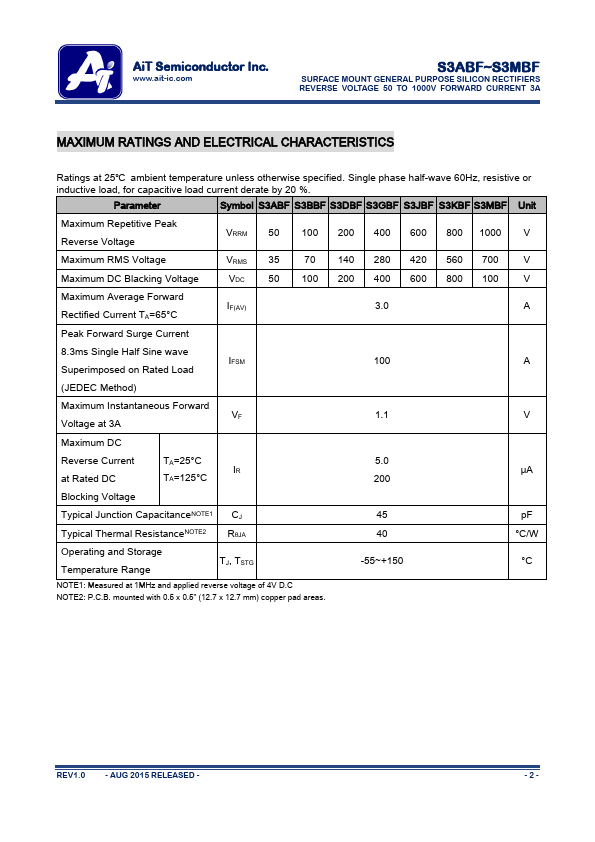

S3GBF Datasheet Preview — Preview of S3GBF PDF

Datasheet Specifications

Part number: S3GBF
Manufacturer: AiT Semiconductor
File Size: 429.93 KB
Datasheet: S3GBF-AiTSemiconductor.pdf
Description: SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIERS

Features

* The S3ABF~S3MBF are available in SMBF package

Applications

* Low profile package Glass Passivated Chip Junction Easy to pick and place Available in SMBF package Package Type Part Number S3ABF S3BBF S3DBF SMBF S3GBF S3JBF S3KBF S3MBF Note SPQ: 5,000pcs/Reel AiT provides all RoHS Compliant Products MECHANICAL DATA
* Case: SMBF
* Terminals:
