WSL04020 - WIRE WOUND SMD INDUCTOR

This page provides the datasheet information for the WSL04020, a member of the WSL201610 WIRE WOUND SMD INDUCTOR family.

📥 Download Datasheet

Datasheet preview – WSL04020

Datasheet Details

Part number WSL04020
Manufacturer AiT Semiconductor
File Size 913.76 KB
Description WIRE WOUND SMD INDUCTOR
Datasheet download datasheet WSL04020 Datasheet
Additional preview pages of the WSL04020 datasheet.

📁 Similar Datasheet

  • WSL0603 - Power Metal Strip Resistors (Vishay Siliconix)
  • WSL0805 - Power Metal Strip Resistors (Vishay Intertechnology)
  • WSL1206 - Power Metal Strip Resistors (Vishay Intertechnology)
  • WSL1506E - Flip Chip Resistors (Vishay Intertechnology)
  • WSL2010 - Power Metal Strip Resistors (Vishay Intertechnology)
  • WSL2010E - Flip Chip Resistors (Vishay Intertechnology)
  • WSL2512 - Power Metal Strip Resistors (Vishay Intertechnology)
  • WSL2512E - Flip Chip Resistors (Vishay Intertechnology)
  • WSL2726 - Power Metal Strip Resistors (Vishay)
  • WSL2816 - Power Metal Strip Resistors (Vishay Intertechnology)
Other Datasheets by AiT Semiconductor

Full PDF Text Transcription

Click to expand full text

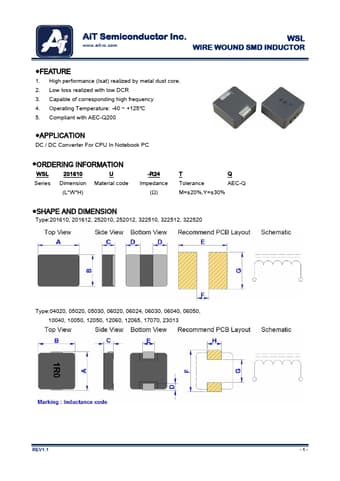

AiT Semiconductor Inc. WSL www.ait-ic.com WIRE WOUND SMD INDUCTOR ●FEATURE 1. High performance (Isat) realized by metal dust core. 2. Low loss realized with low DCR 3. Capable of corresponding high frequency 4. Operating Temperature: -40 ~ +125℃ 5. Compliant with AEC-Q200 ●APPLICATION DC / DC Converter For CPU In Notebook PC ●ORDERING INFORMATION WSL 201610 U Series Dimension Material code (L*W*H) -R24 Impedance (Ω) T Q Tolerance AEC-Q M=±20%,Y=±30% ●SHAPE AND DIMENSION Type:201610, 201612, 252010, 252012, 322510, 322512, 322520 Type:04020, 05020, 05030, 06020, 06024, 06030, 06040, 06050, 10040, 10050, 12050, 12060, 12065, 17070, 23013 REV1.1 -1- AiT Semiconductor Inc. WSL www.ait-ic.
