AT3210 16 GrayScales 160X160 STN LCD Controller

of the frame rate and mod rate Revision 1.1 (January 29,2002) . Change pin numbers . Modify current consumption spec. Revision 1.0 (January 22,2002) . Add revision information . Modify the sequence the D1,D0 of the DFORMT register . Changes of the Aimtron address information AIMTRON TECHNOLOGY CORP.

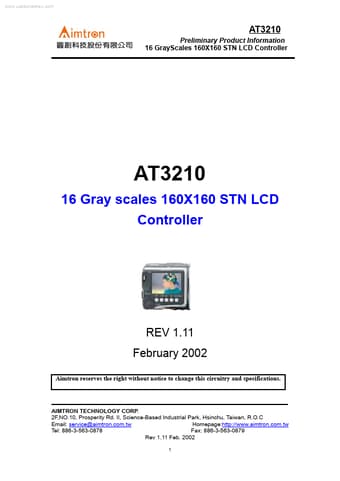

www.DataSheet4U.com AT3210 Preliminary Product Information 16 GrayScales 160X160 STN LCD Controller AT3210 16 Gray scales 160X160 STN LCD Controller REV 1.11 February 2002 Aimtron reserves the right without notice to change this circuitry and specifications. AIMTRON TECHNOLOGY CORP. 2F,NO.10, Prosperity Rd. II, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C Email: service@aimtron.com.tw Homepage:http://www.aimtron.com.tw Tel: 886-3-563-0878 Fax: 886-3-563-0879 Rev 1.11 Feb. 2002 1 AT.

AT3210 Features

* . Supports up to 160X160 / 16 grayscales graphic display . Directly interface to 4-bit interface LCD driver . Hardware pin selectable for 8-bit 6800-series Parallel Interface, 8-bit 8080-series Parallel Interface, or 4-wire Serial Peripheral Interface . Programmable gamma table . Auto increasement o
