AT5609

Bi-directional Motor Driver

Aimtron Technology

AT5609 Features

* ˙Built-in brake function. ˙Built-in diode to absorb surge currents. ˙Low standby circuit current . ˙ Wide range of operating supply voltage (4.5~13.5V). ˙Interfaces with the TTL logic. ˙Built-in thermal shutdown circuit. Description The AT5609 is a monolithic integrated circuit designed for driving

AT5609 General Description

The AT5609 is a monolithic integrated circuit designed for driving bi-directional DC motor. It has two pins of logic input for controlling the forward/reverse and braking, which can supply an output current of up to 1.0A (typical) according to the logic control. It also Built-in power saving circui.

AT5609 Datasheet (200.65 KB)

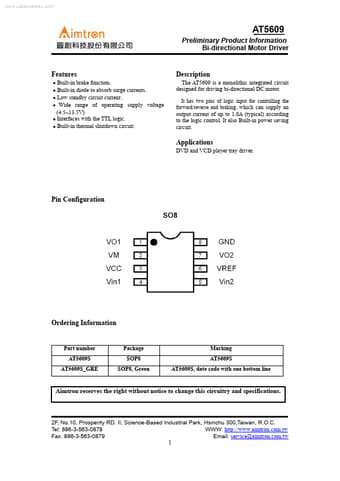

AT5609 Datasheet Preview — Preview of AT5609 PDF

Datasheet Details

Part number:

AT5609

Manufacturer:

Aimtron Technology

File Size:

200.65 KB

Description:

Bi-directional motor driver.
