AK2001 - Functions as a debug port

Product Overview

Part number	AK2001
Manufacturer	Akom
File Size	1.60 MB
Description	Functions as a debug port

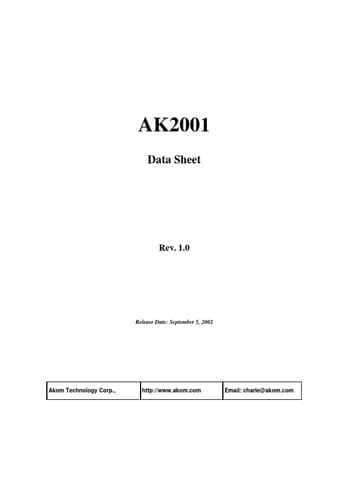

Datasheet	AK2001 Datasheet
Additional preview pages of the AK2001 datasheet.

The AK2001 functions as a debug port on the motherboard.

a new LPC host interface, built-in BCD to 7-segment decoders, time-multiplexed LED drivers and scanning control. With a minimal pin count of 20 in SSOP package, the AK2001 provides all the circuitry required to interface a motherboard to two hexadecimal digit seven-segment LEDs. The AK2001’s debug port function allows real time display of POST codes during system boot. The LED display is able to reflect the system health status so as to provide the cue about what really happened in case of the s.
