AS1824 - Digital Power PoE PD Controllers

Product Overview

Datasheet Details

Part number	AS1824
Manufacturer	Akros Silicon
File Size	1.31 MB
Description	Digital Power PoE PD Controllers
Datasheet	AS1824 Datasheet
Note	This datasheet PDF includes multiple part numbers: AS1824, AS1854. Please refer to the document for exact specifications by model.

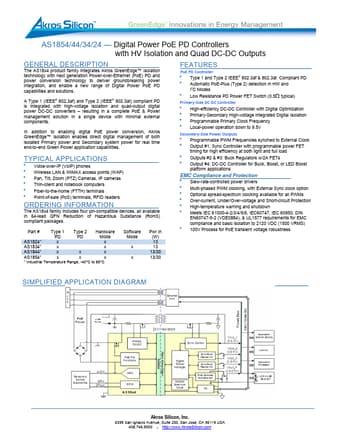

Additional preview pages of the AS1824 datasheet.

Product details

Description

The AS18x4 product family integrates Akros GreenEdge™ Isolation technology with next generation Power-over-Ethernet (PoE) PD and power conversion technology to deliver groundbreaking power integration, and enable a new range of Digital Power PoE PD capabilities and solutions. resulting in a complete PoE & Power management solution in

Features

PoE PD Controller Type 1 and Type 2 IEEE® 802.3af & 802.3at Compliant PD Automatic PoE-Plus (Type 2) detection in HW and I2C Modes Low Resistance PD Power FET Switch (0.5 typical) Primary‐Side DC‐DC Controller High-efficiency DC-DC Controller with Digital Optimization Primary-Secondary High-voltage integrated Digital Isolation Programmable Primary Clock Frequency Local-power operation down to 9.5V Secondary‐Side Power Outputs Programmable PWM Frequencies synched to Externa.
