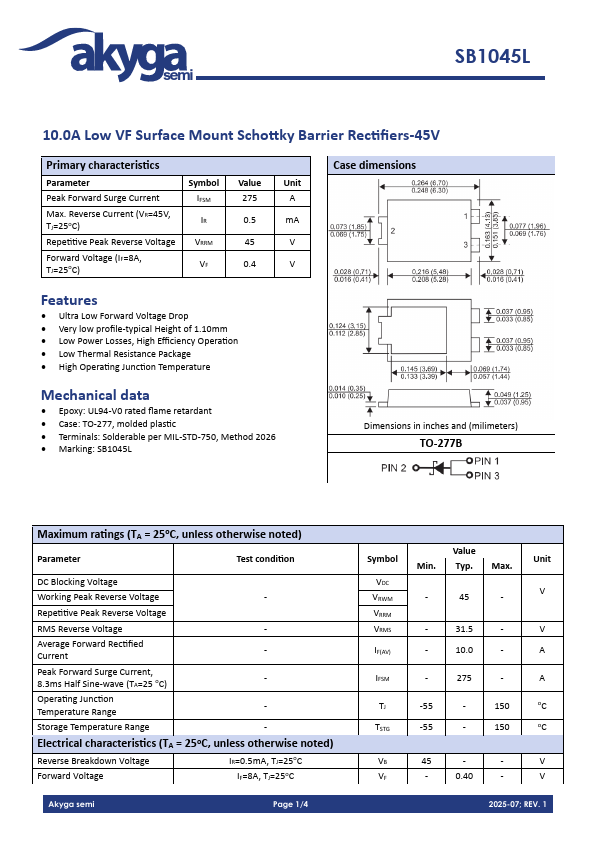

SB1045L - 45V 10.0A Low VF Surface Mount Schottky Barrier Rectifiers

Datasheet Details

Part number	SB1045L
Manufacturer	Akyga
File Size	557.58 KB
Description	45V 10.0A Low VF Surface Mount Schottky Barrier Rectifiers
Datasheet	SB1045L-Akyga.pdf

only.

Ultra Low Forward Voltage Drop.
Very low profile-typical Height of 1.10mm.
Low Power Losses, High Efficiency Operation.
Low Thermal Resistance Package.
High Operating Junction Temperature Mechanical data.
Epoxy: UL94-V0 rated flame retardant.
Case: TO-277, molded plastic.
Terminals: Solderable per MIL-STD-750, Method 2026.
Marking: SB1045L Dimensions in inches and (milimeters) TO-277B Maximum ratings (TA = 25oC,.
