AH711 Datasheet, Sensor, Alfa Electronics

AH711 Features

  • Sensor
  • 1.63mm Hall Elements Spacing
  • Magnetic Type: Bipolar Switch
  • Operating Voltage Range:Supply Voltage 3.8 to 30V
  • Highest ESD performance up to ±4 kV

PDF File Details

Part number:

AH711

Manufacturer:

Alfa Electronics

File Size:

957.44kb

Download:

📄 Datasheet

Description:

Speed & direction hall sensor. Name VCC SPDA DIR SPDB GND AH70X Pin number 1 2 3 4 AH71X Pin number 1 2 3 4 Description Power supply Speed A Direction Speed B G

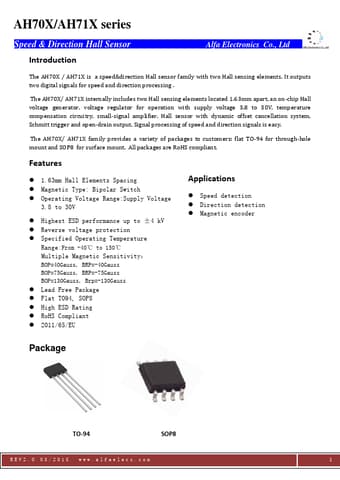

Datasheet Preview: AH711 📥 Download PDF (957.44kb)
Page 2 of AH711 Page 3 of AH711

AH711 Application

  • Applications
  • Speed detection
  • Direction detection
  • Magnetic encoder Package TO-94 SOP8 REV2.0 03/2018 www.alfaelecs.
