AF432N - High Voltage Adjustable Precision Shunt Regulators

This page provides the datasheet information for the AF432N, a member of the AF432N-Alfa High Voltage Adjustable Precision Shunt Regulators family.

Datasheet Summary

Description

The AFN432N are three-terminal adjustable shunt regulators with specified thermal stability.

The output voltage may be set to any value between Vref (approximately 1.24V) and 16 V with two external resistors.

These devices have a typical output impedance of 0.05Ω.

Features

  • Low voltage operation (down to 1.24V) Wide operating current range 80µA to 100Ma Low Dynamic output impedance 0.05 Ω typ. Assembly in SOT-23.

📥 Download Datasheet

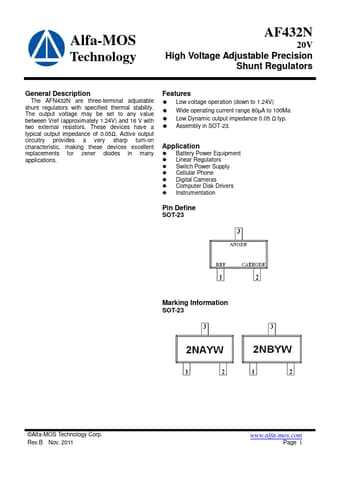

Datasheet preview – AF432N

Datasheet Details

Part number AF432N
Manufacturer Alfa-MOS
File Size 535.37 KB
Description High Voltage Adjustable Precision Shunt Regulators
Datasheet download datasheet AF432N Datasheet
